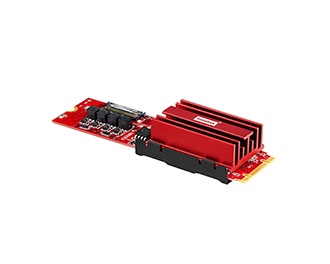

Embedded Peripherals
Maximum flexibility, unlimited expansion
Simms offer a comprehensive portfolio of embedded peripherals, pushing the limits for what is possible with embedded Input/Output expansion.
Simms provides Innodisk’ s portfolio of Embedded Peripherals for a comprehensive range of applications. Whether it’s a proof of concept or up to 100’s of modules there is no MOQ for EP’s, allowing you the flexibility to expand the motherboard capability for the required solution without extensive board redesign costs.
Endless Innovation
Embedded Peripherals are designed as building blocks on top of existing motherboards as they offer flexibility for additional I/O expansion for existing boards without any redesign.
All it takes is a slot for mPCIe or an M.2 space, to easily add another module and another and another….the combinations are limitless. I/O modularisation achieves the small-volume and large-variety customisation service that certain customers require for bespoke applications.
Find Your Fit
EPs have many different types of expansion slots such as LAN, CAN, PoE, Serial, USB and RAID enabling the connection of a multitude of different devices.
A simple, bolt-on EP can often be the difference between project success and failure. With over 100 different types of peripherals, there is a solution for any application or device.
Range of Product Specifications
Camera Module
- Form Factor
- Low Light, HDR, Global shutter
- Input I/F
- USB, MIPI CSI-2
- Power consumption
- Approximate 1W
- Operating Temp
- −20°C~70°C
- Warranty
- 3 years
Communication
- Form Factor
- mPCIe, M.2 2230 (A-E)/2242/2260/2280 (B-M), Standard PCIe
- Function
- CANBus, LAN, Serial, PoE, DIO, OOB
- Input I/F
- PCIe 2.0 x1, PCIe 2.1x1, PCIe 3.0 x 2
- Power consumption
- 2.5W, 2.85W, 4W, 8W, 86W
- Operating Temp
- 0°C~60°C, −40°C ~ +85°C
- Warranty
- 3 years
Storage
- Form Factor
- mPCIe, M.2 3042/2280-B-M, Low profile PCIe
- Input I/F
- PCIe 2.0, PCIe 2.0x2
- Output I/F
- SATA III, USB 3.0
- Output connector
- SATA 7pin x4, 19 Pin box header, M.2 Key-B x2
- Operating Temp
- −40°C ~ +85°C
- Warranty
- 3 years
Disk Array
- Form Factor
- mPCIe, 2.5" SSD, Low Profile PCIe
- Input I/F
- PCIe 2.0, PCIe 2.0 x2, SATA III
- Output I/F
- SATA III
- Output connector
- M.2 Key-B x2, M.2 Key-B 2242/2260/2280 x2, mSATA x2, Pin Header 9Pin x1, SATA 7pin x 2
- Operating Temp
- 0°C ~ 70°C
- Warranty
- 3 years
Display
- Form Factor
- mPCIE, M.2 2280 B-M
- Input I/F
- PCIe 1.0, PCIe 2.0 x2
- Output I/F
- VGA, VGA x2, HMDI, DVI-D, Single & Dual LVDS
- Output connector
- 40 pin, 20 pin
- Operating Temp
- 0°C ~ 70°C
- Warranty
- 3 years
Testing
- Form Factor
- mPCIe, 2.5", 2.5" SSD, Low Profile PCIe
- Input I/F
- PCIe 2.0 x1, SATA II, III, USB2.0
- Output I/F
- PCIe 2.0 x1, PATA, USB 2.0, SATA III
- Output connector
- M.2 Key A-E, B, Mx1 mPCIE, CF card, SATA, CFAst, mSATA
- Operating Temp
- 0°C ~ 70°C, −40°C ~ +85°C
- Warranty
- 3 years
Core Product Solutions
Camera Modules
Innodisk’s camera EP modules optimise image quality for different AI applications depending on the requirement, to meet the demand for high-speed and high-resolution applications in different embedded systems.
With connectivity including USB2.0 and platform support covering Windows, Linux, Android and MacOS and a wide variety of camera options, these plug in modules are ideal for expanding an existing network, proof of concept or mass manufacturing. Ideal for Surveillance, Retail and Healthcare applications.
Communication
Innodisk’s expansion modules provide flexible connectivity and bandwidth to industrial systems.
With mPCIe GbE LAN, PoE, CAN bus, and serial communication modules, users can expand existing systems to achieve the dynamic connectivity required by IoT and edge devices.
Flexible Industrial I/O expansion cards provide stable connectivity and bandwidth to industrial systems, which utilise robust PoE, CANbus, LAN, DIO and serial cards, which are available in form factors such as Mini PCIe, PCIe and M.2.
Related Product Series
Storage
EP storage comes in a wide range of storage interfaces, including PCIe/SATA/USB/PATA. EP storage modules allow system integrators to expand or convert those interfaces in embedded systems.
With a multitude of options available Storage EPs are designed for total system flexibility whatever the requirement and environment.
EPs have different interfaces or connections to the motherboard, so in turn, the EP has different kinds of connections depending on what is being plugged into it.
Related Product Series
Why Simms?
All embedded peripherals are different with over 100 different varieties. The team at Simms have extensive knowledge and can advise you on the best fit, form and function.
Extensive range
From CanBus to LAN, M.2 and PCIe and Edge to embedded devices we have an embedded peripheral solution for your application.
Flash Expertise
Our team have been working with NAND flash technology since its inception. We invest significantly to ensure our knowledge remains best in class.
Dual Source
The Simms team will ensure you have a dual source solution if you need it.
Relationships
Strong relationships to facilitate direct access to experienced FAEs and technical presales teams at global vendors.
